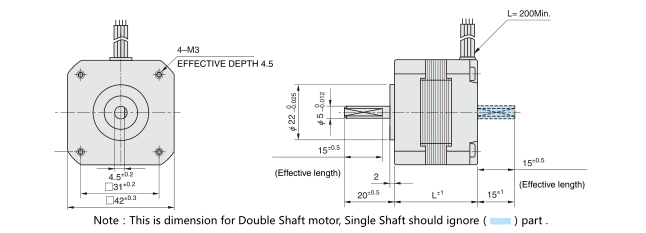

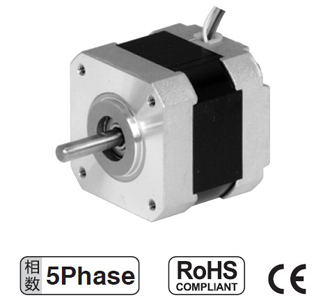

Ø42mm Series 5-Phase Hybrid Step Motor
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item
|
Specifications
|
| Step Angle | 0.72° |
| Step Angle Error | 0.72°±5% |
| Tolerance of Resistance | ±10% |
| Tolerance of Inductance | ±20% |
| Termperature Rise | 85℃ Max |
| Operate Tem. Range | -20℃~+50℃ |
| Insulation Resistance | 100MΩMin，500VDC |
| Dielectric Strength | 500VAC，1 min |
| Radial Play | 0.025Max.（500g-Load） |
| End Play | 0.075Max.（1000g-Load） |
|
Model
|
Rated
Voltage |
Rated
Current |
Winding
Resistance |
Holding
Torque |
Rotor
Inertial |
Mass
|
Length
|
Speed
Match |
|
V/Phase
|
A/Phase
|
Ω/Phase
|
N.m
|
g.cm2
|
kg
|
mm
|
||
|
HB420013S-01
|
2.63
|
0.35
|
7.50
|
0.13
|
35
|
0.20
|
33
|
Low
|
|
HB420013S-02
|
1.28
|
0.75
|
1.70
|
0.13
|
35
|
0.20
|
33
|
Mid
|
|
HB420013S-03
|
0.67
|
1.40
|
0.48
|
0.13
|
35
|
0.20
|
33
|
High
|
|
HB420018S-01
|
3.33
|
0.35
|
9.50
|
0.18
|
54
|
0.24
|
39
|
Low
|
|
HB420018S-02
|
1.65
|
0.75
|
2.20
|
0.18
|
54
|
0.24
|
39
|
Mid
|
|
HB420018S-03
|
0.90
|
1.40
|
0.67
|
0.18
|
54
|
0.24
|
39
|
High
|
|
HB420024S-01
|
1.65
|
0.75
|
2.20
|
0.24
|
68
|
0.31
|
47
|
Low,Mid
|
|
HB420024S-02
|
0.90
|
1.40
|
0.65
|
0.24
|
68
|
0.31
|
47
|
Mid,High
|
