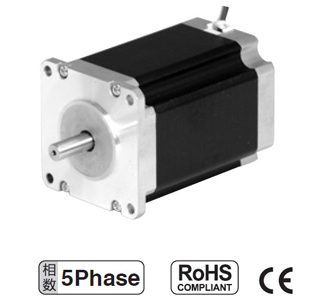

Size Ø60mm Series 5-Phase Hybrid Step Motor
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item
|
Specifications
|
| Step Angle | 0.72° |
| Step Angle Error | 0.72°±5% |
| Tolerance of Resistance | ±10% |
| Tolerance of Inductance | ±20% |
| Termperature Rise | 85℃ Max |
| Operate Tem. Range | -20℃~+50℃ |
| Insulation Resistance | 100MΩMin，500VDC |
| Dielectric Strength | 500VAC，1 min |
| Radial Play | 0.025Max.（500g-Load） |
| End Play | 0.075Max.（1000g-Load） |
|

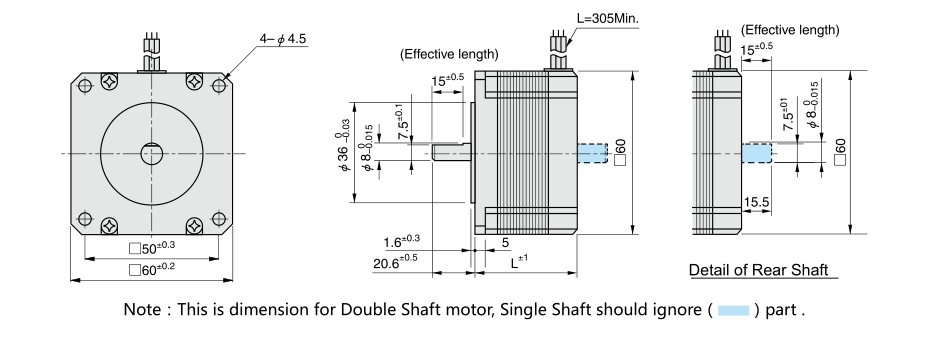

Model
|
Rated
Voltage |
Rated
Current |
Winding
Resistance |
Holding
Torque |
Rotor
Inertial |
Mass
|
Length
|
Speed
Match |
|
V/Phase
|
A/Phase
|
Ω/Phase
|
N.m
|
g.cm2
|
kg
|
mm
|
||
|
HB600042S-01
|
1.95
|
0.75
|
2.60
|
0.42
|
175
|
0.5
|
48.5
|
Low
|
|
HB600042S-02
|
1.12
|
1.40
|
0.80
|
0.42
|
175
|
0.5
|
48.5
|
Mid,High
|
|
HB600060S-01
|
2.55
|
0.75
|
3.40
|
0.60
|
220
|
0.7
|
56.5
|
Low
|
|
HB600060S-02
|
1.54
|
1.40
|
1.10
|
0.60
|
220
|
0.7
|
56.5
|
Mid,High
|
|
HB600120S-01
|
2.52
|
1.40
|
1.80
|
1.30
|
440
|
1.2
|
86.5
|
Low
|
|
HB600120S-02
|
1.82
|
2.80
|
0.65
|
1.30
|
440
|
1.2
|
86.5
|
Mid,High
|
