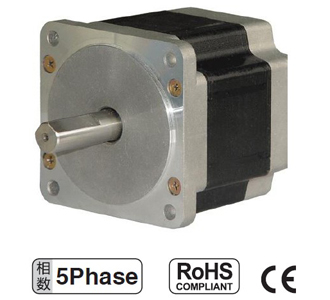

    Size Ø86mm Series 5-Phase Hybrid Step Motor发布时间:2014-12-10

    Size Ø86mm Series 5-Phase Hybrid Step Motor


    ◆General Specifications

    Item
    Specifications
    　　Step Angle 　　0.72°
    　　Step Angle Error 　　0.72°±5%
    　　Tolerance of Resistance 　　±10%
    　　Tolerance of Resistance 　　±20%
    　　Termperature Rise 　　85℃ Max(Max)
    　　Operate Tem. Range 　　-20℃~+50℃
    　　Insulation Resistance  　　100MΩMin，500VDC
    　　Dielectric Strength 　　500VAC，1 min
    　　Radial Play 　　0.025Max.（500g-Load）
    　　End Play 　　0.075Max.（1000g-Load）


    ◆Electrical Specifications

    Model
    Rated
    Voltage
    Rated
    Current
    Winding
    Resistance
    Holding
    Torque
    Rotor
    Inertial
    Mass
    Length
    Speed
    Match
    V/Phase
    A/Phase
    Ω/Phase
    N.m
    g.cm2
    kg
    mm
    HB860210S-01
    2.46
    1.4
    1.76
    2.1
    900
    1.8
    64.5
    Low
    HB860210S-02
    1.60
    2.8
    0.57
    2.1
    900
    1.8
    64.5
    Mid, High
    HB860410S-01
    3.82
    1.4
    2.73
    4.1
    2000
    3.0
    96.5
    Low
    HB860410S-02
    1.88
    2.8
    0.67
    4.1
    2000
    3.0
    96.5
    Mid, High
    HB860630S-01
    2.38
    2.8
    0.85
    6.3
    3000
    4.0
    126.5
    		Low,Mid,High

    Note:The above are standard products,Motors can be customized base on customer's request.

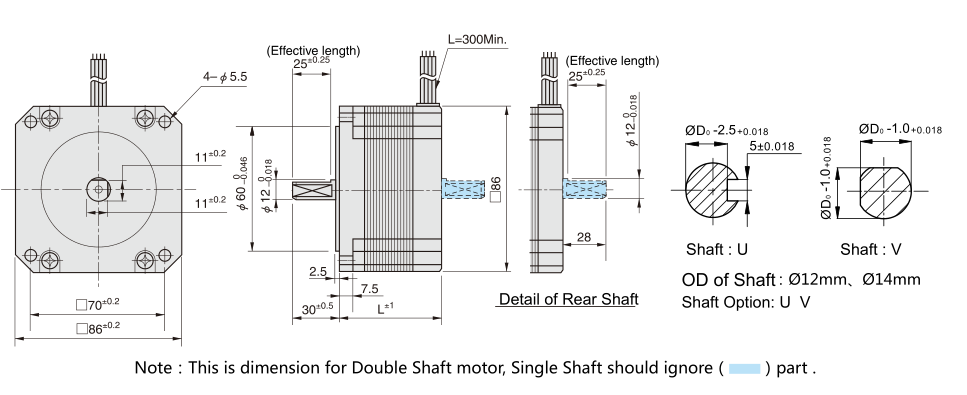

    ◆Dimensions （Unit:mm）
