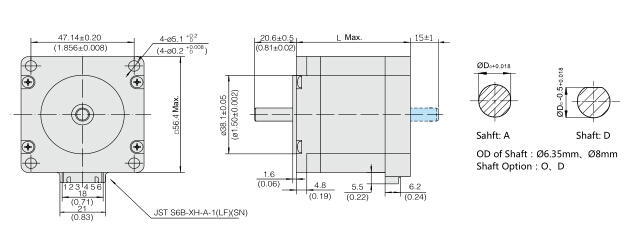

Size Ø57mm Series 3-Phase Hybrid Step Motor
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item
|
Specifications
|
| Step Angle | 1.2° |
| Step Angle Error | 1.2°±5% |
| Tolerance of Resistance | ±10% |
| Tolerance of Resistance | ±20% |
| Termperature Rise | 85℃ Max(Rated Current) |
| Operate Tem. Range | -20℃~+50℃ |
| Insulation Resistance | 100MΩMin，500VDC |
| Dielectric Strength | 500VAC，1 min |
| Radial Play | 0.02Max.（450g-Load） |
| End Play | 0.08Max.（450g-Load） |
| Torque of Radial(Max.) | 75N(20mm From Flange) |
| Torque of Shaft(Max.) | 15N |
|
Model
|
Rated
Current |
Winding
Resisitance |
Winding
Inductance |
Holding
Torque |
Rotor
Inertial |
Position
Torque |
Mass
|
Length
|
Speed
Match |
|
A/Phase
|
Ω/Phase
|
mH/Phase
|
N.m
|
g.cm2
|
N.m
|
kg
|
mm
|
||
|
HD570022S01
|
5.2
|
1.3
|
1.4
|
0.51
|
110
|
0.22
|
0.45
|
42
|
Low,Mid,High
|
|
HD570044S01
|
5.8
|
1.7
|
1.7
|
1.02
|
220
|
0.44
|
0.75
|
56
|
Low,Mid,High
|
|
HD570070S01
|
5.8
|
1.05
|
2.4
|
1.74
|
380
|
0.70
|
1.10
|
79
|
Low,Mid
|
|
HD570115S01
|
5.8
|
0.38
|
0.5
|
2.1
|
530
|
1.15
|
1.57
|
102
|
Low,Mid |
