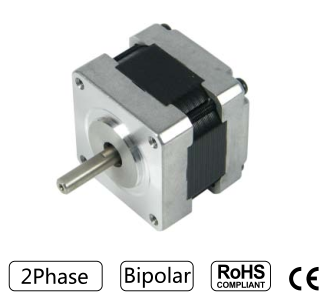

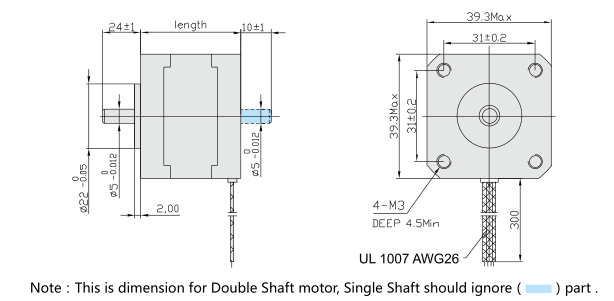

Size Ø39mm Series 2-Phase Hybrid Step Motor
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item
|
Specifications
|
| Step Angle | 1.8° |
| Step Angle Error | 1.8° ±5% |
| Tolerance of Resistance | ±10% |
| Tolerance of Inductance | ±20% |
| Termperature Rise | 85℃ Max(2-Phase Power) |
| Operate Tem. Range | -20℃ ~+50℃ |
| Insulation Resistance | 100MΩMin，500VDC |
| Dielectric Strength | 500VAC，1 min |
| Radial Play | 0.02Max.（450g-Load） |
| End Play | 0.08Max.（450g-Load） |
| Torque of Radial(Max.) | 28N(Standard 20mm) |
| Torque of Shaft(Max.) | 10N |
|
Model
|
Rated
Voltage |
Rated
Current |
Winding
Resistance |
Winding
Inductance |
Holding
Torque |
Rotor
Inertial |
Mass
|
Length
|
|
V/Phase
|
A/Phase
|
Ω/Phase
|
mH/Phase
|
mN.m
|
g.cm2
|
kg
|
mm
|
|
| HF390006S01 |
2.64
|
0.4
|
6.6
|
7.5
|
65
|
11
|
0.12
|
20
|
|
HF390011S01
|
4
|
0.9
|
4.2
|
4.0
|
110
|
17
|
0.18
|
31
|
|
HF390021S01
|
6
|
0.8
|
7.5
|
7.0
|
215
|
27
|
0.22
|
37
|
|
HF390028S01
|
12
|
0.3
|
40
|
100
|
280
|
40
|
0.25
|
44
|
