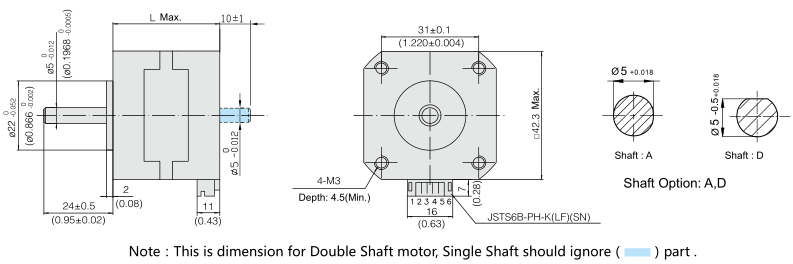

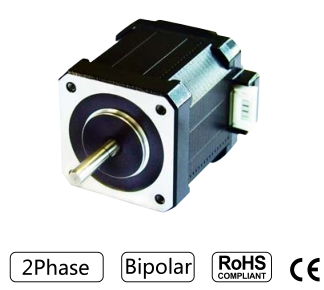

Size Ø42mm Series 2-Phase Hybrid Step Motor
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item
|
Specifications
|
| Step Angle | 1.8° |
| Step Angle Error | 1.8° ±5% |
| Tolerance of Resistance | ±10% |
| Tolerance of Inductance | ±20% |
| Termperature Rise | 85℃ Max( 2-Phase Power) |
| Operate Tem. Range | -20℃ ~+50℃ |
| Insulation Resistance | 100MΩMin，500VDC |
| Dielectric Strength | 500VAC，1 min |
| Radial Play | 0.02Max.（450g-Load） |
| End Play | 0.08Max.（450g-Load） |
| Torque of Radial(Max.) | 28N(Standard 20mm) |
| Torque of Shaft(Max.) | 10N |
|
Model
|
Rated
Current |
Winding
Resistance |
Winding
Inductance |
Holding
Torque |
Rotor
Inertial |
Mass
|
Length
|
Speed
Match |
|
A/Phase
|
Ω/Phase
|
mH/Phase
|
N.m
|
g.cm2
|
kg
|
mm
|
||
|
HF420014S01
|
0.4
|
24
|
36
|
0.14
|
20
|
0.15
|
25
|
Mid,Low
|
|
HF420014S02
|
1.4
|
1.9
|
2
|
0.14
|
Mid,High
|
|||
|
HF420032S01
|
1.7
|
1.35
|
2.3
|
0.32
|
33
|
0.23
|
34
|
Mid,Low
|
|
HF420032S02
|
2.0
|
0.9
|
1.5
|
0.32
|
Mid,High
|
|||
|
HF420045S01
|
1.7
|
1.6
|
3.6
|
0.45
|
40
|
0.30
|
40
|
Mid,Low
|
|
HF420045S02
|
2.0
|
0.9
|
1.8
|
0.45
|
Mid,High
|
|||
|
HF420053S01
|
2.0
|
1.8
|
4.0
|
0.53
|
66
|
0.36
|
49
|
Mid,High
|
|
HF420065S01
|
2.0
|
1.6
|
3
|
0.65
|
120
|
0.6
|
63
|
Mid,Low
|
