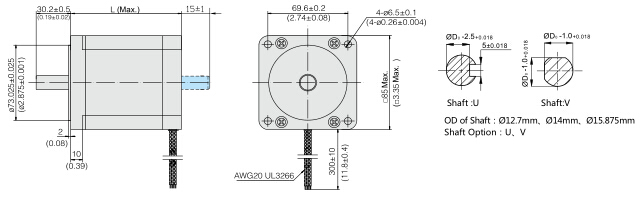

86mm Series 2-Phase/4-Leads Hybrid Step Motor High Torque
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item
|
Specifications
|
| Step Angle | 1.8° |
| Step Angle Error | 1.8°±5% |
| Tolerance of Resistance | ±10% |
| Tolerance of Inductance | ±20% |
| Termperature Rise | 85℃ Max(2-Phase Power) |
| Operate Tem. Range | -20℃ ~+50℃ |
| Insulation Resistance | 100MΩMin，500VDC |
| Dielectric Strength | 500VAC，1 min |
| Radial Play | 0.02Max.（450g-Load） |
| End Play | 0.08Max.（450g-Load） |
| Torque of Radial(Max.) | 220N(20mm From Flange) |
| Torque of Shaft(Max.) | 60N |
|
Model
|
Rated
Current |
Winding
Resistance |
Winding
Inductance |
Holding
Torque |
Rotor
Inertial |
Mass
|
Length
|
Speed
Match |
|
A/Phase
|
Ω/Phase
|
mH/Phase
|
N.m
|
g.cm2
|
kg
|
mm
|
||
|
HF860304SXX
|
3.0
|
1.40
|
3.9
|
3.4
|
1000
|
1.7
|
66
|
Mid,Low
|
|
HF860450S01
|
4.5
|
0.80
|
7.0
|
4.5
|
1400
|
2.3
|
80
|
Mid,Low
|
|
HF860450S02
|
6.0
|
0.43
|
1.8
|
Mid,High
|
||||
|
HF860850SXX
|
6.0
|
0.50
|
3.1
|
8.5
|
2700
|
3.8
|
118
|
Mid,High
|
|
HF861200SXX
|
6.0
|
0.55
|
4.7
|
12.0
|
4000
|
5.3
|
156
|
Mid,Low
|
